Since the creation of Shell-O-Matic, we have built nearly 1000 slurry tanks so we know there is much more to it than a simple rotating drum with a paddle.

First, we pay attention to providing our customer with rugged and reliable driving mechanisms to ensure their tanks never stop. Second, we know that slurry material is expensive and probably the most important and sensitive component of the shell building system, so we provide you with all available options to measure, control and maintain the slurry quality.

This includes:

  • Level sensing and control of the robot to maintain constant dipping depth
  • Rotating speed adjustment
  • Real time viscosity sensing
  • Temperature sensing and control through a water-cooled paddle
  • Automatic cover that opens only when parts need to be dipped
  • Vacuum slurry tanks if needed

To ensure ease of cleaning we can also provide a variety of plastic covers and liners, including one-piece plastic liners for the tank interior. Furthermore, all wetted parts of the tank are made of high-quality stainless steel.

We can also provide turntables that can hold many tanks and position the one needed for the robot area, thus allowing a smaller envelope robot to access a plurality of tanks. If you need to move the tank around, we can build it on an air cushion, making it easy for an operator to displace it.

tank size d d1 a b e f h slurry volume
liteR us gal
36”
915 mm
31"
785 mm
3”
75 mm
33.12”
840 mm
40”
1016 mm
58”
1475 mm
44”
1118 mm
540 142
41”
1040 mm
36”
915 mm
3”
75 mm
33.12”
840 mm
45”
1140 mm
63”
1600 mm
44”
1118 mm
700 185
43”
1090 mm
38”
965 mm
3”
75 mm
33.12”
840 mm
46”
1170 mm
63”
1600 mm
44”
1118 mm
772 204
48”-L
1220 mm
42”
1067 mm
3”
75 mm
33.6”
854 mm
51”
1295 mm
63”
1600 mm
44”
1118 mm
960 254
48”-H
1220 mm
42”
1067 mm
3”
75 mm
37.4”
950 mm
51”
1295 mm
75”
1905 mm
44”
1118 mm
1070 281
54”-L
1370 mm
48”
1220 mm
3”
75 mm
31.5”
800 mm
57”
1448 mm
78”
1980 mm
44”
1118 mm
1111 293
54”-H
1370 mm
48”
1220 mm
3”
75 mm
36”
915 mm
57”
1448 mm
78”
1980 mm
49.2”
1250 mm
1295 342
60”-L
1525 mm
54”
1370 mm
3”
75 mm
31.5”
800 mm
63”
1600 mm
81”
2060 mm
44”
1118 mm
1370 361
60”-H
1525 mm
54”
1370 mm
3”
75 mm
40.2”
1021 mm
63”
1600 mm
81”
2060 mm
49.2”
1250 mm
1597 422
62” -L
1575 mm
56”
1425 mm
3”
75 mm
34”
865 mm
66”
1675 mm
98”
2475 mm
46”
1175 mm
1529 402
62”-H
1575 mm
56”
1425 mm
3”
75 mm
47”
1195 mm
66”
1675 mm
98”
2475 mm
59”
1500 mm
2172 572
67”
1700 mm
60”
1525 mm
3.5”
90 mm
42.5”
1080 mm
71”
1803 mm
102”
2590 mm
59.25”
1504 mm
2160 568
72”
1830 mm
64”
1625 mm
7”
180 mm
52”
1320 mm
80”
2030 mm
109”
2770 mm
74.5”
1890 mm
3274 862
75”-L
1905 mm
66.5”
1670 mm
4”
100 mm
48.5”
1232 mm
81”
2057 mm
105”
2667 mm
54.75”
1390 mm
2700 710
75”-H
1905 mm
66.5”
1670 mm
4”
100 mm
60”
1525 mm
81”
2057 mm
105”
2667 mm
71.8”
1825 mm
3700 975
88”
2235 mm
** 95”
2415 mm
125”
3175 mm
100”
2540 mm
** 106”
2695 mm
138”
3505 mm

Standard features

  • Removable, L-shaped paddle
  • On/off switch
  • Overload protection

Options:

  • Variable speed
  • Slurry level sensing
  • Remote start/stop
  • Automatic cover
  • Water cooling
  • Plastic liner
  • Temperature controls
  • Full plastic tank
  • Zero speed detection (alarm)
tank size d e a b h slurry volume
liteR us gal
24”
610mm
28”
710mm
2.5”
64mm
27”
685mm
37.75”
960mm
185 49
30”
760mm
34”
870mm
2.75”
70mm
28”
710mm
38.75”
985mm
300 78
32”
810mm
36”
910mm
2.75”
70mm
29”
735mm
40”
1015mm
353 93
36” -L
915mm
40”
1016mm
3”
75 mm
25”
635mm
38.75”
985mm
380 100
36” -H
915mm
40”
1016mm
3”
75 mm
30”
762mm
43.5”
1104mm
465 122
47.5”
1200mm
52.7”
1340mm
3.8”
96mm
41.6”
1056mm
57.5”
1460mm
1085 285

Very large tank

88”-2235 mm dia.
Mobile unit with on-board drive

Vacuum slurry tank

Water cooling manually controlled

Water cooling automatically controlled

Viscometer

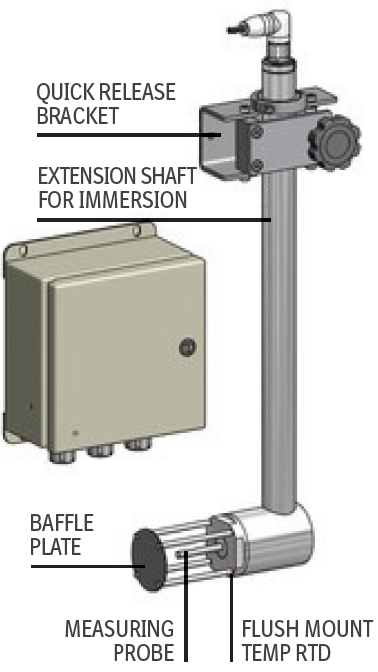

The AST-100IPRI Viscometer is inserted into the slurry and outputs continuous measurement of viscosity and temperature.

The instrument enables automatic viscosity control and improved quality assurance over cup method.

Benefits:

  • Correlates with lab viscometer and cup measurement
  • Enables continuous logging of viscosity and temperature
  • Alarms for “off-spec” slurry condition
  • Improves stucco coverage and optimizes drying time
  • Reduces cracking, excess metal, burn in and penetration
  • Minimizes operator involvement

Features:

  • 316SS construction with baffl e plate for abrasion protection
  • Easy cleanable design with no moving parts
  • Internal RTD eliminates slurry build up
  • Viscosity & temperature outputs as 4-20mA, RS-485 & RS-232
  • Fully tested for future QC checks

Options:

  • AST-310SY-420 controller for closed loop viscosity control
  • Quick release bracket for inspection and cleaning
  • Manual and wireless data logging options
  • 115VAC, 230VAC or 24vdc power input options

Water cooling control Module D-19057

Mobile Slurry Tank On air cushions

Turntable, Powered

  • Size 1 – 90”
  • Size 2 – 100”

Automatic slurry level sensing

The robot follows the slurry level and maintains a constant shell dimension “A”.

When the minimum slurry level “Q” is reached, the robot will stop at the end of the cycle and give an alarm signal.

The operator then ads slurry to max. level (using a pump, by gravity or manually).

Slurry level sensor

Slurry transfer pump
